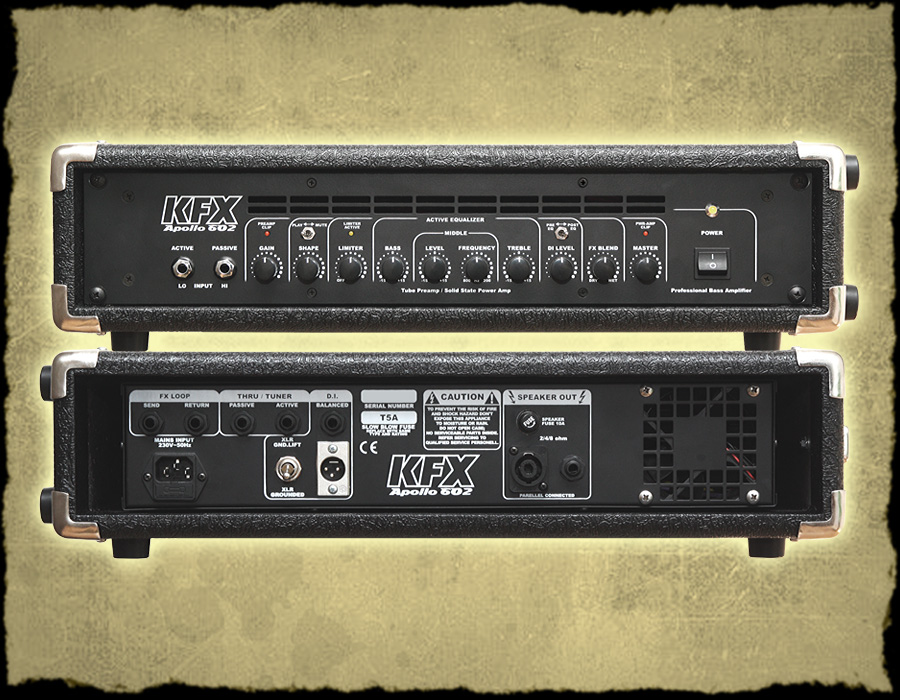

KFX Apollo 602 is powerful tube preamp/MOSFET 600W poweramp bass guitar amplifier. The ECC83S preamp tube gives the amp a vintage warmth and the MOSFET poweramp brings it to the modern era with tons of power. Active and Passive instrument Inputs, the Shape function enhances the sound and character of your instrument, 3 band active EQ with a 200-800Hz parametric Mid control and +/-15dB on each EQ pot. FX loop with a blending pot, Mute/Play switch for tuning, fet Compressor/Limiter in the preamp section, FX blend control, D.I. level control, Pre/Post eq DI selection, clip and compression activity LEDs. All the tweeks and power to please a modern bass player.

  • Tube preamp 1x ECC83S – JJ Tubes
  • 600W MOSFET poweramp (600W-2ohm, 400W-4ohm)
  • 3 band active +/-15dB EQ, parametric mid control 200-800Hz
  • FX Loop: serial/parallel +4dB level
  • Thru/Tuner: connect another amp and a tuner at the same time
  • silent FAN ventilation
  • Mute/Play switch
  • D.I. XLR and 6.3mm jack out with level control, ground lift on XLR
  • Preamp Compressor/Limiter with threshold indication
  • Output: 4pin speakon and a 6,3mm jack (10A speaker fuse)
  • Impedance 2, 4, 8 ohm
  • PCB based - hand wired
  • Dimensions: 19in-2HE rack unit, W-48,2cm, H-9cm, D-34cm (without woden frame)
  • Weight: 13,5 kg
  • Power requirements: 230V, 50Hz, 600W, T5A slow blow fuse (spare fuse inside the fuse compartment)

Specifications are subject to change without prior notice.
